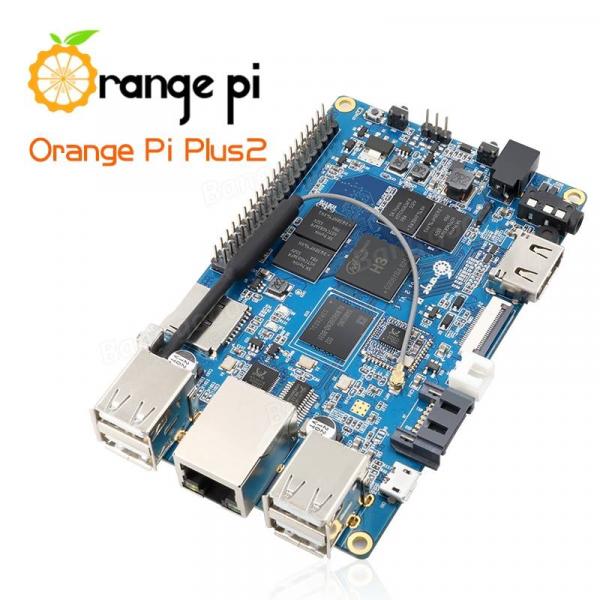

Orange Pi plus 2
Основной сервер (мозг системы)
CPU
H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM)
2GB DDR3 (shared with GPU)
Onboard Storage
TF card (Max. 32GB) / MMC card slot , up to 2T on 2.5 SATA disk
16GB EMMC Flash
Onboard Network
10/100/1000M Ethernet RJ45
Onboard WIFI
Realtek RTL8189ETV, IEEE 802.11 b/g/n
Video Input
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input
MIC
Video Outputs
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
Audio Output
3.5 mm Jack and HDMI
Power Source
DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports
Four USB 2.0 HOST, one USB 2.0 OTG
Buttons
Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)
Low-level peripherals
40 Pins Header,compatible with Raspberry Pi B+
GPIO(1x3) pin
UART, ground.
LED
Power led & Status led
Other
IR input
Supported OS
Android, Ubuntu, Debian, Raspbian Image
Interface definition
Product size
108mm × 67mm
Weight
83g
Где задействовано: Получение баланса лицевого счета ребенка на питание; Проектирование и внедрение систем умного дома; Система умного дома; Управление телевизором;
